iLevil 3 AW

Proudly Made in Florida, USA

Regular price $ 1,495.00 USD
Regular price Sale price $ 1,495.00 USD
Sale Sold out
Shipping calculated at checkout.
Product Comparison Chart

Build Your Ideal Glass Cockpit

At a Fraction of the Cost

The iLevil 3 AW gives you the ability to broadcast crucial flight information straight to your phone or tablet without compromising weight, space, cost, and reliability

A Complete Six-Pack Solution

Get engine information, indicated airspeed, WAAS GPS, AHRS, ADS-B in, and data recording

  • GRT Engine Analyzer

    Connect a GRT EIS 4000, 6000, or 9000 via the iLevil AP RS232 serial port and display your engine data

  • Airspeed

    Display your airspeed indicator and adjusted it to match your V speeds

  • Weather

    Transmit your weather information data wirelessly to your favorite navigation app

  • Traffic

    Display the traffic around you and where they are heading without having a cluttered background

  • EFIS

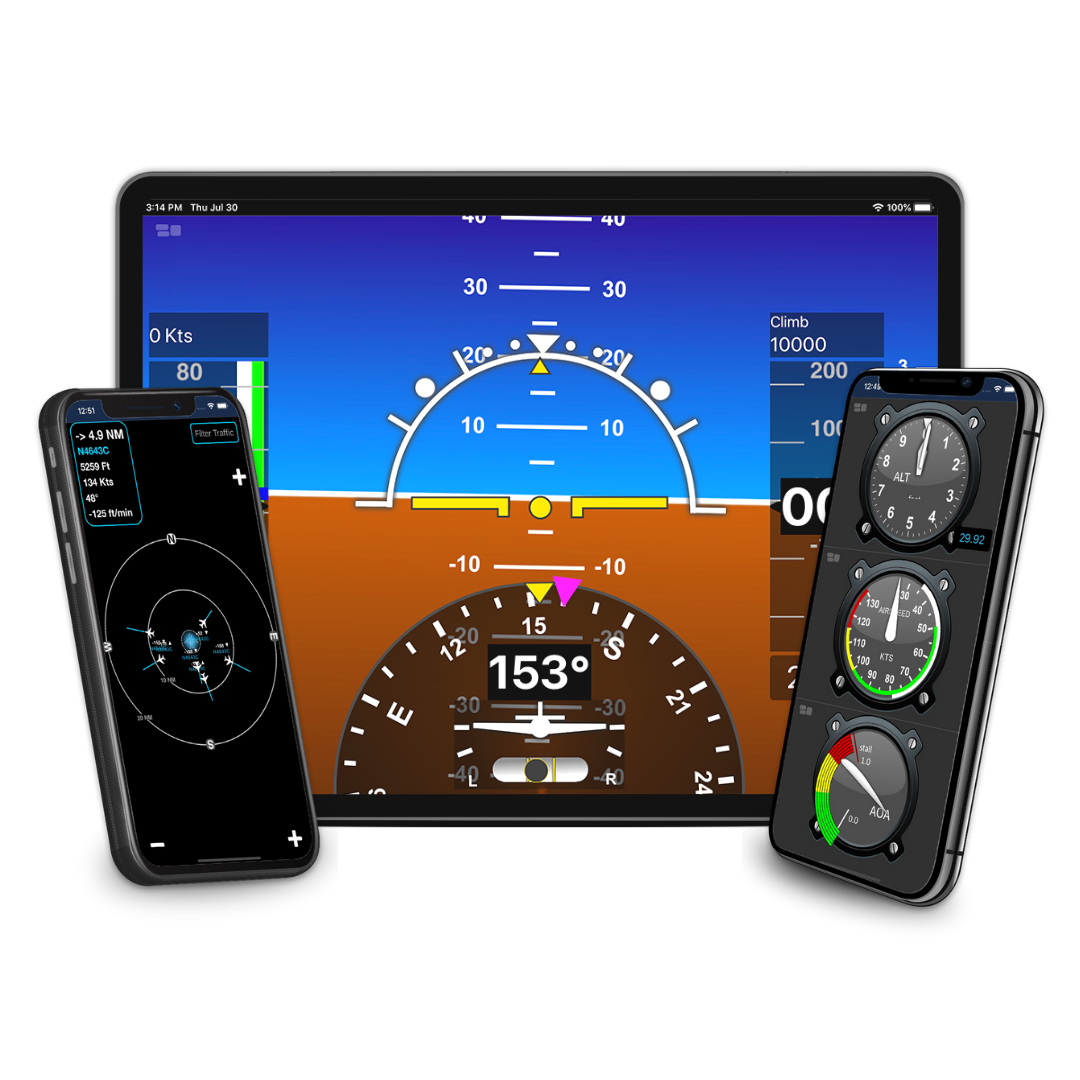

    Display your EFIS including altitude and heading bug setting, integrated AoA indicator, and Configurable V speeds

  • Altimeter

    Just like the old school, you can easily display your altitude above sea level

  • Vertical Speed Indicator

    Easily display your rate of climb and descent

  • Data Recording

    Record your flight data and review it on CloudAhoy, Google Earth, Xplane, Flight Simulator, and Microsoft Excel

FAA NORSEE Approved

The iLevil 3 AW can be used as a backup system on IFR and VFR conditions on Certified Aircraft and as a primary VFR on experimental and light-sport

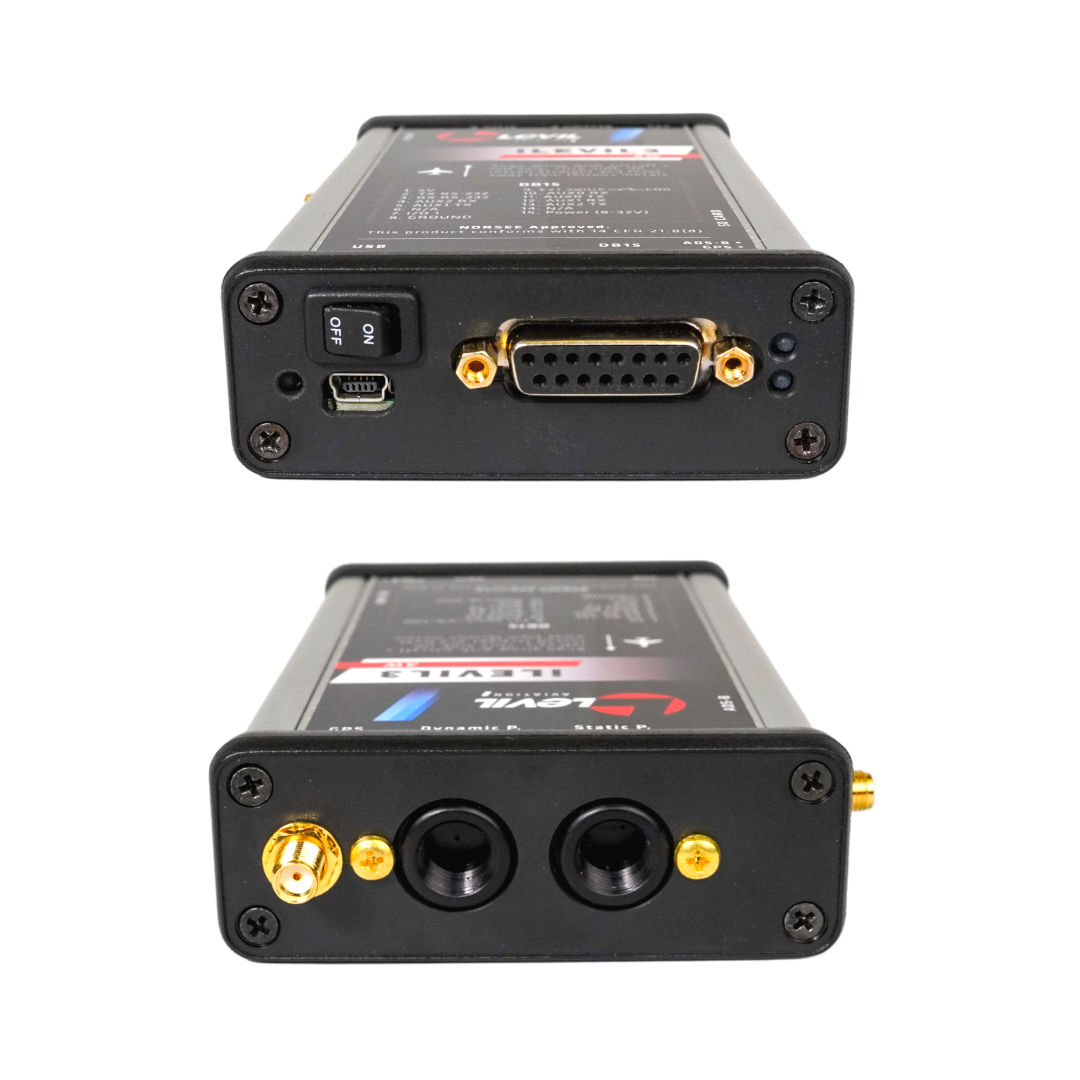

All The Ports You Need

You can connect the iLevil 3 AW to other navigation devices like Garmin GTN-650 or 750 and others alike using RS232 aviation data or NMEA $GPRMB autopilot string

Endless Panel Possibilities

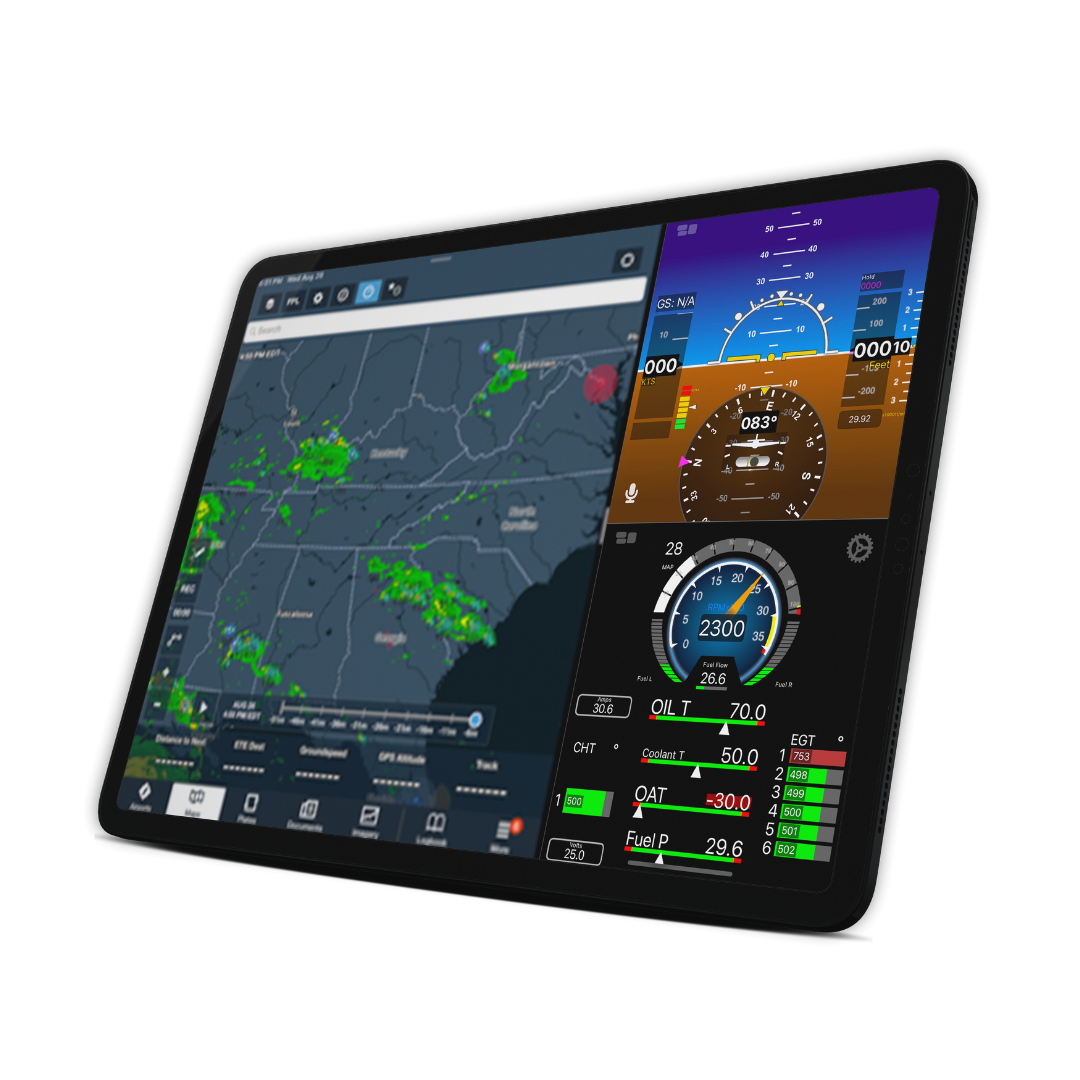

You can modernize your panel with up to 5 smart phones & tablets connected simultaneously

Use our app side-by-side or transmit your data

Compatible with ForeFlight, iFly GPS, Aerovie, iEfis, EasyVFR, Fltplan, FlyWise Efis, iFlyPlanner, Naviator, Sky-Map, Xavion, Avare, WingX Pro, Skydemon, Air Navigation Pro, and FlyQ

Try It 30 Days, Risk Free

The iLevil 3 AW comes with a risk-free money back guarantee within 30 days after you receive your unit plus a 1 year limited warranty against defects in materials and workmanship

Fast and Easy Installation

The iLevil 3 AW facilitates the installation with remote GPS and ADS-B antennas, and power inputs for 12V to 28V systems. You can watch the iLevil 3 AW About2Stall video review below to learn more

Frequently Asked Questions

How much speed can it handle?

The minimum speed for the iLevil 3 AW is 32 knots and the maximum 320 knots

Is it compatible with other apps?

Yes, the iLevil 3 AW is compatible with our Levil Aviation App (free of subscription), iFly GPS, Aerovie, iEfis, EasyVFR, Fltplan, FlyWise Efis, iFlyPlanner, Naviator, Sky-Map, Xavion, ForeFlight, Avare, WingX Pro, Skydemon, Air Navigation Pro, and FlyQ

Can I mount it on a certified aircraft?

Yes, the iLevil 3 AW is NORSEE Approved. NORSEE is a production approval that allows us to legally sell units for installation on certified aircraft. Installation approval is given by a mechanic under 14 CFR 1.1 / 14 CFR 43 Appendix A definition of a Minor Alteration. If the mechanic deems the installation of the NORSEE device as minor, then the device can be installed with a simple logbook entry. If the mechanic feels that the installation is considered major, then a field approval will be needed for installation

What's the battery life?

The unit runs as long as it's plugged into the aircraft. It also has a backup battery that lasts 5.5 hours and charges via USB

What's its weight and dimension?

It weights 11oz (311g) with dimensions of 3.2" x5" x1.1" (8x12x3 cm)

Can I connect it to more than 1 device?

Yes, the iLevil 3 AW can be connected to as many as 7 devices simultaneously, providing redundancy and almost limitless panel display options

What's inside the box?

Inside the box you'll find the iLevil 3 AW device, USB to Mini USB cable, GPS antenna, ADS-B antenna, DB15 male connector, user manual, and SD card. You can click here to watch an unboxing video

Can I store my flight data?

All flights are stored inside an SD card which you can access anytime to replay, review, analyze, and share. Recording features are also useful for flight schools

Where do you ship?

We ship to North America & Europe. If you're outside of these territories, click here to visit our distributor page

How long does it take to arrive?

Due to the global shortage off microprocessors, we must now extend our lead times to 4-6 weeks. We strongly encourage customers to continue to place orders as we will be fulfilling them on a first come first serve basis as microprocessors become available, we apologize for any inconvenience this may cause. We appreciate your patience in the unprecedented event

What about returns & warranty?

We're certain that you'll love our products! or we're happy to offer a 100% money-back guarantee within 30 days after you receive your unit. Your unit is also warranted against defects in materials and workmanship for a period of one (1) year from the date of original retail purchase. Click hereto register your warranty

Is it compatible with iOS & Android?

Our products are fully compatible with iOS devices. The android compatibility is currently on beta and it's limited to some devices and not all features are supported. For updated information in regards to Android compatibility please reach out to aviationsupport@levil.com

What's inside the box?

Wireless Broadcasting Outer Module unit, USB to mini USB cable, mounting brackets, bracket screws, protector case with magnetic switch, Remove Before Flight flag, NORSEE papers, and Micro SD card. You can watch this unboxing video for more information

Where can I read the manual?

Click here to access all of our manuals and installation guides

What are other pilots saying?

8,000+ pilots fly with Levil! Here are some you might recognize

Customer Reviews

Based on 36 reviews
94%
(34)
6%
(2)
0%
(0)
0%
(0)
0%
(0)
L
Loren Warner
GRT EIS Option

Because we built our experimental to meet IFR requirements and have ADSB-Out, we found the option iLevil provides to hard wire our ELT and Transponder to the iLevil's integral GPS ideal. We also hard wired our GRT EIS so essential instruments and fuel levels could also be read on the iPads, instead of having to look at the GRT display as well.

S
Steve Jenkins
iLevil 3 AW Sampling Rate

The iLevel went for a data logging flight in 100deg heat. The unit held up better than we did!!

R
Robert Edmunds
Lots of research just what I was looking for.

Simple way to add glass panel to your bird.

B
Ben Koop

iLevil 3 AW

S
Scott Cooper
I am in AW!!!!

Works very, very well. I got the AW3 because I want to send Airspeed to a small display on my glare shield like a HUD. I'm loving this thing, makes me a better pilot.
